CL-PLC: Programmable Logic Controller Trainer Kit
About Product

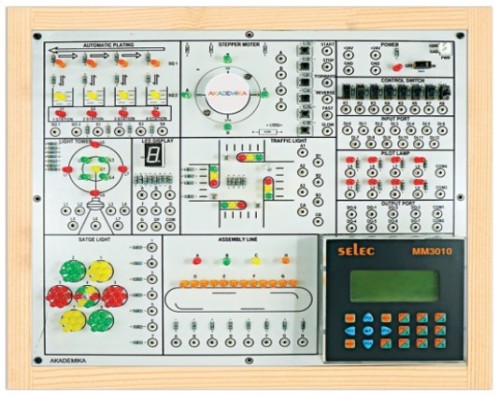

A modular PLC training system designed to teach industrial automation, ladder programming, and real-time control applications. With digital and analog I/O, onboard actuators, MODBUS communication, and multiple real-world experiments, it provides comprehensive learning on process control, SCADA basics, and factory automation operations.
1) A single-board PLC training platform with 10 digital inputs and 8 digital outputs, LCD display, MODBUS RTU communication, RTC and a rich onboard user interface for ladder-logic experimentation.
FLEXYS PANEL Tx4
1) Input
i) Total inputs: 10
ii) Input voltage: 24VDC (abs. max 30 VDC)
iii) Input type: PNP
iv) Isolation: 2.5 kv
v) Response time: 10ms max
2) Output
i) Total outputs: 8
ii) Contact rating: 5A resistive @ 230 VAC 5A resistive @ 30 VDC
iii) Min switching time: 20ms max
iv) Isolation: 2.5 KV
v) Response time: 20ms
3) Analog Series Input
i) Total inputs: 3-AI0, AI1, AI2, AI3 (not in use)
ii) Resolution: 12 bits
iii) Conversion time: 100 ms
4) Analaog Series Output
i) Total outputs: 2
ii) Output type: Current - 0 to 20 mA, Voltage - 0 to 10 V
5) Functional
i) Programming method: Window based software for ladder programming & HMI configuration
ii) No. of objects: Max. 5000
iii) Min scan time: 200 µsec
iv) Data memory: 16K
v) Code memory: 351K
vi) Upload memory: 96K
1) Day light tower
2) Traffic light control
3) Four-phase stepper motor control (physical control)
4) Automatic liquid mixing device
5) Assembly line control (Optional)
6) Water level control tower
7) Manipulator control
8) LED digital control
9) Four conveyor control
10) Vending machine control
11) Three floor elevator control
12) Mail sorting control
13) Rolling mill control
14) Automatic plating
15) Logic gate (AND, OR, NOT, NOR, NAND, EX-OR, EX-NOR)
