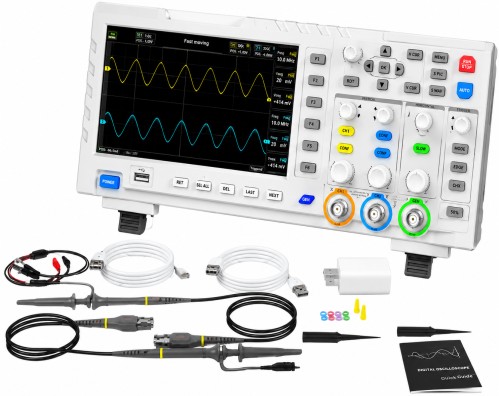

1014D: 100MHz Bench-top 2 In 1 Oscilloscope
About Product
The 100MHz Bench-top 2-in-1 Oscilloscope combines a dual-channel digital oscilloscope and a DDS function signal generator for accurate waveform analysis and signal generation. It features a 100MHz bandwidth, 1GSa/s sampling rate, and a 7-inch high-resolution LCD display. Ideal for electronics laboratories, circuit testing, signal measurement, and educational applications.
1) Dual Channel.
2) 2 in 1: Digital Oscilloscope + DDS Function Signal Generator.
3) 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
4) Complete trigger function (single/normal/automatic).
5) Capable of storing up to 1000 customized chopping signals.
6) High-voltage protection module.
7) One-button AUTO and adaptive trigger (25%, 50%, 75%).
8) 7-inch 800*480 resolution high-definition LCD screen.
9) Powerful Waveform Picture Manager.
10) One-key Screenshot and Saving.
11) Cursor measurement function.
12) USB Picture Export
13) Lissajous Graphic Display & FFT Viewing.
14) Ideal for both periodic analog and aperiodic digital signals.
Oscilloscope
i) Bandwidth: 100MHz
ii) Channels: 2CH
iii) Sampling Rate: 1GSa/s
iv) Rise Time: <3ns
v) Memory Depth: 240kpts
vi) Waveform Capture Rate: 50000wfms/s
vii) Vertical Sensitivity: 50mV/div-50V/div
viii) Input Impedance: 1MΩ
ix) Time Base Scale: 10ns/div-50s/div
x) Trigger Types: Auto/Normal/Single
xi) Auto Measurements: Vpp, Max, Min, RMS(Vrms),Avg(Vavg), Peak, Freq, Cycle, Time+, Time-, Duty+, Duty- 12 types
Waveform Generator
i) Max Frequency: 10MHz
ii) Channels: 1CH
iii) Vertical Resolution: 1Hz
iv) Modulations: Capture waveform as a source to output, 1MHz 2.4VPP
v) Frequency Characteristics:
Sin: 10MHz 2.5VPP
Square: 2MHz 2.5VPP
Triangle: 2MHz 2.5VPP
Sawtooth: 2MHz 2.5VPP
Ladder: 2MHz 2.5VPP
Others: 2MHz 2.5VPP
vi) Waveforms: sine, square, triangle, sawtooth, anti sawtooth, ladder wave, half wave, full wave, exponential wave, logarithmic wave, log-periodic wave, square root wave, multi-tone signal, sync pulse wave; 14 types
GENERAL CHARACTERISTICS
1) Product Color: White
2) Standard Carton: 65x40x43cm
3) Product Size: 310x145x70mm
4) Carton Gross Weight: 17.1kg
5) Display: 7-inch 800x480 TFT LCD Screen
6) Quantity Per Carton: 10pcs
7) Product Net Weight: 963g
8) Standard Accessories:
i) Main device- 1
ii) P6100 Probe- 2
iii) Alligator Clip Probe- 1
iv) Charger(5V2A)- 1
v) Power Cable- 1
vi) Data Cable- 1
vManual- 1
