ACL-AM-FM : AM - FM Radio Receiver Kit
About Product

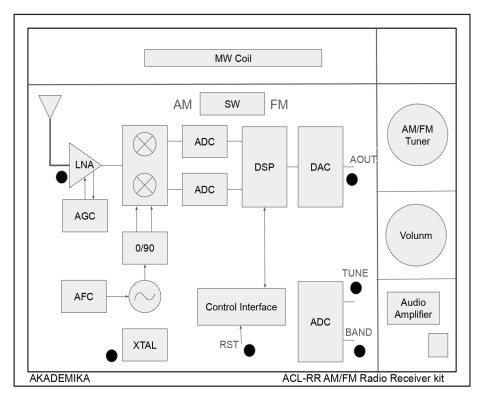

The AM/FM Radio Receiver Trainer is an educational platform designed for practical study of AM/MW and FM radio reception. It features ferrite rod and telescopic antennas, manual station tuning, band selection, and audio amplification. The trainer enables hands-on experimentation with radio signal reception, antenna selection, and audio output control.
1) Educational AM/MW and FM broadcast receiver for practical study of radio reception.
2) The trainer demonstrates the use of two different antenna arrangements for two different radio bands. The ferrite-rod antenna is used for AM/MW reception, while the telescopic antenna is used for FM reception, helping students understand how antenna selection depends on the operating radio band.
3) A manual tuning control is provided to select different AM/MW and FM broadcast stations. By varying the tuning control, the receiver changes the tuning condition and selects the nearest available radio station, giving students a practical understanding of radio tuning.
4) A mechanical slide switch allows the user to select between AM/MW and FM operation. According to the selected band, the corresponding antenna and signal-input path are connected to the receiver section, making the band-selection process easy to observe and understand.Provides signal conditioning and filtering before amplification.
5) The recovered audio signal passes through a volume-control section before reaching the audio amplifier. This enables practical study of audio-level adjustment and demonstrates how the final electrical audio signal is converted into audible sound.
6) Receiver, audio amplifier, volume control and headphone output available as one functional chain.
2) The trainer demonstrates the use of two different antenna arrangements for two different radio bands. The ferrite-rod antenna is used for AM/MW reception, while the telescopic antenna is used for FM reception, helping students understand how antenna selection depends on the operating radio band.
3) A manual tuning control is provided to select different AM/MW and FM broadcast stations. By varying the tuning control, the receiver changes the tuning condition and selects the nearest available radio station, giving students a practical understanding of radio tuning.
4) A mechanical slide switch allows the user to select between AM/MW and FM operation. According to the selected band, the corresponding antenna and signal-input path are connected to the receiver section, making the band-selection process easy to observe and understand.Provides signal conditioning and filtering before amplification.
5) The recovered audio signal passes through a volume-control section before reaching the audio amplifier. This enables practical study of audio-level adjustment and demonstrates how the final electrical audio signal is converted into audible sound.
6) Receiver, audio amplifier, volume control and headphone output available as one functional chain.
1) Frequency Bands : AM (MW), FM
2) FM Frequency Range : 88 MHz - 108 MHz
3) FM Antenna : External telescopic whip antenna
4) Tuning : Manual, using linear potentiometer
5) AM / MW Frequency Range : 522 kHz - 1440 kHz
6) Input Supply : -12 V, + 12 V , + 5 V, GND
7) Voltage Regulator : LM317
8) Receiver Supply : Regulated 3 V
9) AM / MW Antenna : Ferrite rod with MW coil
10) Band Selection : Mechanical AM/FM slide switch
11) Audio Output : Amplifier with audio jack Headphone
2) FM Frequency Range : 88 MHz - 108 MHz
3) FM Antenna : External telescopic whip antenna
4) Tuning : Manual, using linear potentiometer
5) AM / MW Frequency Range : 522 kHz - 1440 kHz
6) Input Supply : -12 V, + 12 V , + 5 V, GND
7) Voltage Regulator : LM317
8) Receiver Supply : Regulated 3 V
9) AM / MW Antenna : Ferrite rod with MW coil
10) Band Selection : Mechanical AM/FM slide switch
11) Audio Output : Amplifier with audio jack Headphone
1) To study the AM/MW Radio Receiver
2) To study the FM Radio Receiver
2) To study the FM Radio Receiver
