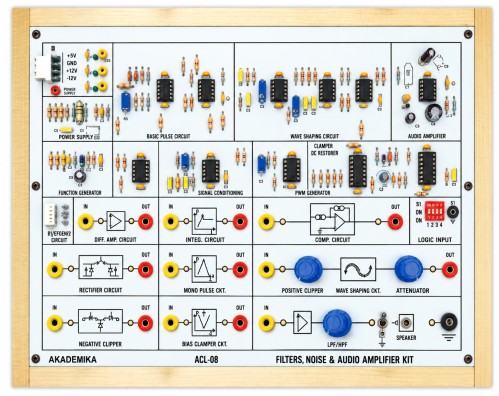

ACL-FIL: Filters/Noise and Audio Amplifier Kit
About Product
The ACL-FLS Filters, Noise & Audio Amplifier Kit enables students to perform practical experiments on noise generation, S/N ratio measurement, and frequency response analysis. It integrates multiple filters, a noise adder stage, and an audio amplifier with a speaker for hands-on understanding of real-world communication system behavior.
1) Designed for practical study of filtering, noise and audio amplification.
2) Demonstrates how different filters select, pass or reject frequency components.
3) Allows observation of the effect of noise on signals.
4) Provides signal conditioning and filtering before amplification.
5) Mobile based interactive e-manual
2) Demonstrates how different filters select, pass or reject frequency components.
3) Allows observation of the effect of noise on signals.
4) Provides signal conditioning and filtering before amplification.
5) Mobile based interactive e-manual
1) Output amplitude
i) White noise source
ii) Output amplitude : Adjustable from 0 ~ 3Vpp
2) Signal attenuation network
i) Adjustable from 0 to the maximum of input value signal + noise adder stage
3) Audio amplifier with loud speaker
i) Output power : 0.5W
ii) Speaker : 8 Ω, 0.3W
Filters
4) High pass filter
i) 3.4 KHz cutoff
5) Band pass filter
i) Frequency range 7 ~ 13 KHz
6) Band reject filter
i) Frequency range 7 ~ 13 KHz
7) Matched filter
i) π section : 20 KHz cutoff
ii) T section : 20 KHz cutoff
8) Input voltage
i) 0 ~ 2 Vpp
9) Output voltage
i) 0 ~ 2 Vpp
10) Switch faults
i) 4 switch faults are provided on board to study different effects on circuit
11) Interconnection
i) 2mm banana socket
12) Test points
i) 24 test points are provided on board to observe various intermediate signals
13) Power supply
i) GND, +5V, +12V, -12V
i) White noise source
ii) Output amplitude : Adjustable from 0 ~ 3Vpp
2) Signal attenuation network
i) Adjustable from 0 to the maximum of input value signal + noise adder stage
3) Audio amplifier with loud speaker
i) Output power : 0.5W
ii) Speaker : 8 Ω, 0.3W
Filters
4) High pass filter
i) 3.4 KHz cutoff
5) Band pass filter
i) Frequency range 7 ~ 13 KHz
6) Band reject filter
i) Frequency range 7 ~ 13 KHz
7) Matched filter
i) π section : 20 KHz cutoff
ii) T section : 20 KHz cutoff
8) Input voltage
i) 0 ~ 2 Vpp
9) Output voltage
i) 0 ~ 2 Vpp
10) Switch faults
i) 4 switch faults are provided on board to study different effects on circuit
11) Interconnection
i) 2mm banana socket
12) Test points
i) 24 test points are provided on board to observe various intermediate signals
13) Power supply
i) GND, +5V, +12V, -12V
1) Examine the operation of a noise generator
2) Examine the operation of a signal attenuation network
3) Measurement of S/N ratio
4) Measurement of noise figure
5) Measurement of the frequency response and power output of an audio amplifier
6) To calculate frequency response of high pass, band pass band reject and matched (T and π section) filters
2) Examine the operation of a signal attenuation network
3) Measurement of S/N ratio
4) Measurement of noise figure
5) Measurement of the frequency response and power output of an audio amplifier
6) To calculate frequency response of high pass, band pass band reject and matched (T and π section) filters
