AL-DL: Analog/Digital Link for Plastic Fiber
About Product

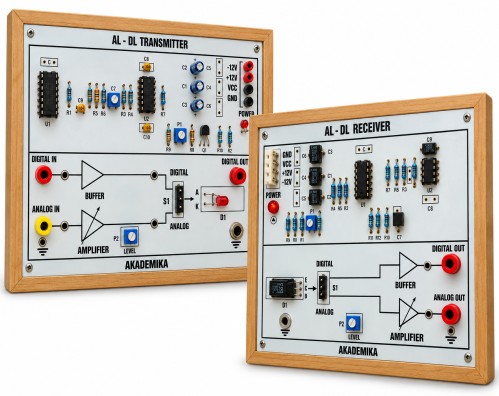

The AL-DL Analog/Digital Link for Plastic Fiber is an educational training system designed to study analog and digital signal transmission through plastic optical fiber. It uses a 660nm visible LED transmitter and a phototransistor receiver to demonstrate fiber optic communication principles. The trainer supports practical experiments on analog and digital links, numerical aperture measurement, bending loss, and propagation loss in optical fibers.
1) TX: SFH 756 - 660nm - Visible LED
2) Bandwidth: 200KHz
3) Type: Step Index, Multimode
4) RX: SFH 350 - Photo Transistor Detector
5) Fiber Optic Cable: Plastic Fiber
6) Power supply: -12v , +12v , +5v , GND
7) Numerical Apperture: 0.5
2) Bandwidth: 200KHz
3) Type: Step Index, Multimode
4) RX: SFH 350 - Photo Transistor Detector
5) Fiber Optic Cable: Plastic Fiber
6) Power supply: -12v , +12v , +5v , GND
7) Numerical Apperture: 0.5
1) Fiber Optic Analog Link
2) Fiber Optic DIgital Link
3) Numerical Aperture Measurement
4) Bending Loss and Propagation Loss in Fiber
2) Fiber Optic DIgital Link
3) Numerical Aperture Measurement
4) Bending Loss and Propagation Loss in Fiber
