DSO-TC3 - MINI Type 3 In 1 Pocket Oscilloscope
About Product

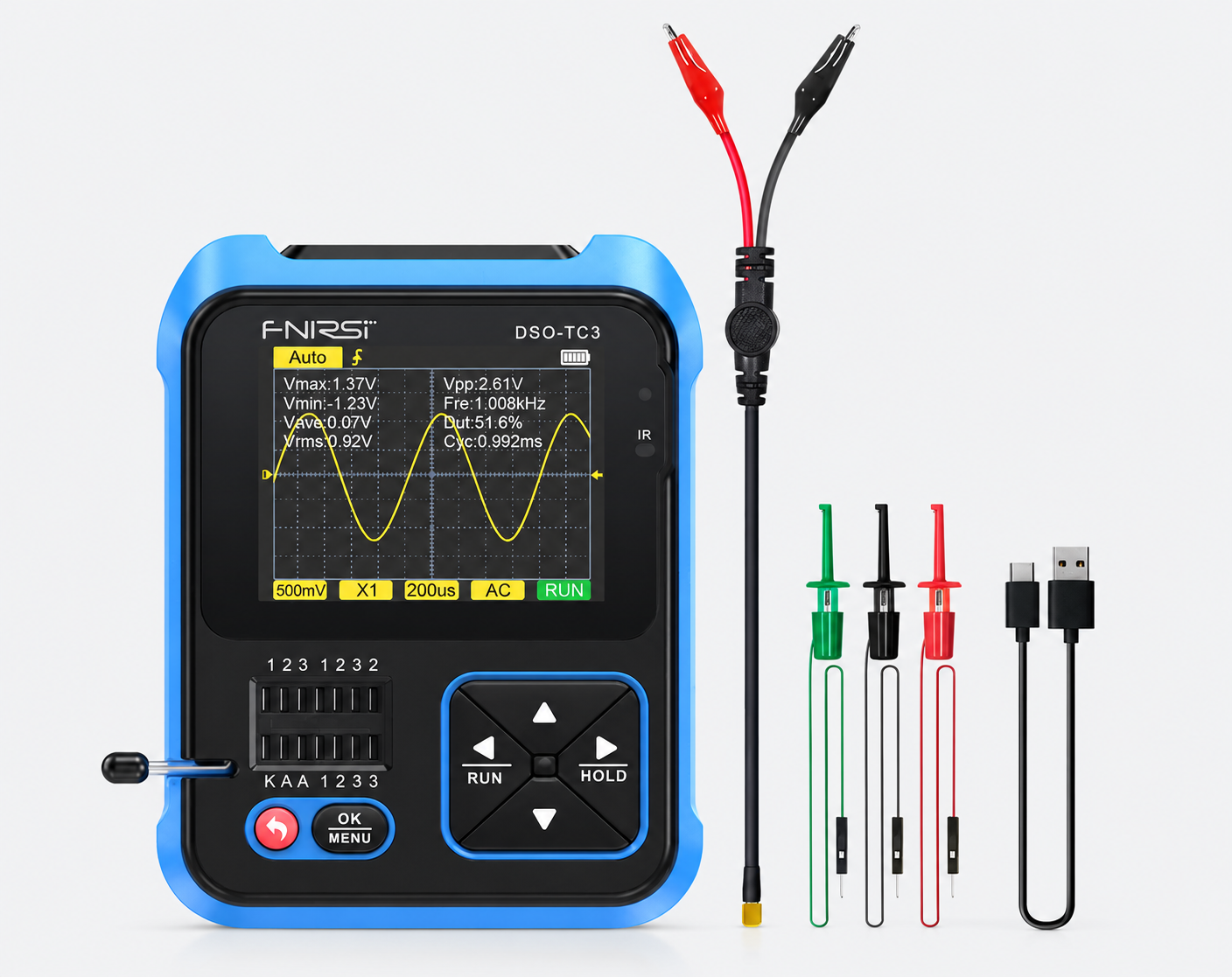

DSO-TC3 combines a digital Electronic measuring instrument, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.
1 ) 3-IN-1 Integration: digital storage oscilloscope, component tester, signal generator for beginners, hobbyist.
2 ) Fnirsi handheld oscilloscope: Performance: 10MS/s sampling, 500kHz bandwidth.
3 ) Large TFT Display: Clear visualization.
4 ) Rechargeable Battery: Portable convenience.
5 ) Trigger Functions: Single, Normal, Automatic.
6) Transistor Testing: NPN, PNP, FET, diodes, in circuit transistor tester
7) Component Analysis: Pin definition, NEC protocol.
8) MOS Test Mode: Identifies various transistor types.Other Modes: Continuity, voltage, PWM, temperature sensors.
9) Waveform Generator: Sine, square, pulse, triangle, ramp, DC.
2 ) Fnirsi handheld oscilloscope: Performance: 10MS/s sampling, 500kHz bandwidth.
3 ) Large TFT Display: Clear visualization.
4 ) Rechargeable Battery: Portable convenience.
5 ) Trigger Functions: Single, Normal, Automatic.
6) Transistor Testing: NPN, PNP, FET, diodes, in circuit transistor tester
7) Component Analysis: Pin definition, NEC protocol.
8) MOS Test Mode: Identifies various transistor types.Other Modes: Continuity, voltage, PWM, temperature sensors.
9) Waveform Generator: Sine, square, pulse, triangle, ramp, DC.
Oscilloscope
i) Bandwidth: 500kHz
ii) Channels: 1CH
iii) Sampling Rate: 10MSa/s
iv) Vertical Sensitivity: 10mV/div-10V/div
v) Time Base Scale: 1μs/div-10s/div
vi) Input Impedance: 1MΩ
vii) Trigger Types: Auto/Normal/Single
viii) Auto Measurements: Period, Freq, Pk-Pk, Max, Min, Avg, RMS, Duty Cycle; 8 types
Waveform Generator
i) Max Frequency: 100kHz
ii) Channels: 1CH
iii) Resolution: 1Hz
iv) Frequency Characteristics: Sine: 1-100KHz/0-3.3V/50%
v) Square: 1-100KHz/3.3V/50%
vi) Pulse: 1-100KHz/3.3V/0-100%
vii) Triangle: 1-100KHz/0-3.3V/50%
viii) Ramp: 1-100KHz/0-3.3V/0-100%
ix) DC: 0-3.3V
x ) Waveforms: sine, square, pulse, triangle, ramp, DC; 6 types
Component Tester
i) Capacitor: ✓
ii) Resistance: ✓
iii) Inductor: ✓
iv) Diode: ✓
v) Triode: ✓
vi) Regulated Diode: ✓
vii) MOSFET: ✓
viii) SCRS/TRIAC: ✓
GENERAL CHARACTERISTICS
i) Product Color: Blue & Black
ii) Product Net Weight: 138g
iii) Product Size: 79x103x31mm
iv) Standard Carton: 63.5x32x30.5cm
v) Display: 2.4 inch TFT color screen
vi) Carton Gross Weight: 14.9kg
vii) Battery: 3.7V, 1500mAh Lithium battery, Standby time 4 hours
viii) Quantity Per Carton: 50PCS
ix) Standard Accessories: Main device*1, Ordinary Probe *1, Test hook*3, Data Cable*1, Manual*1
i) Bandwidth: 500kHz
ii) Channels: 1CH
iii) Sampling Rate: 10MSa/s
iv) Vertical Sensitivity: 10mV/div-10V/div
v) Time Base Scale: 1μs/div-10s/div
vi) Input Impedance: 1MΩ
vii) Trigger Types: Auto/Normal/Single
viii) Auto Measurements: Period, Freq, Pk-Pk, Max, Min, Avg, RMS, Duty Cycle; 8 types
Waveform Generator
i) Max Frequency: 100kHz
ii) Channels: 1CH
iii) Resolution: 1Hz
iv) Frequency Characteristics: Sine: 1-100KHz/0-3.3V/50%
v) Square: 1-100KHz/3.3V/50%
vi) Pulse: 1-100KHz/3.3V/0-100%
vii) Triangle: 1-100KHz/0-3.3V/50%
viii) Ramp: 1-100KHz/0-3.3V/0-100%
ix) DC: 0-3.3V
x ) Waveforms: sine, square, pulse, triangle, ramp, DC; 6 types
Component Tester
i) Capacitor: ✓
ii) Resistance: ✓
iii) Inductor: ✓
iv) Diode: ✓
v) Triode: ✓
vi) Regulated Diode: ✓
vii) MOSFET: ✓
viii) SCRS/TRIAC: ✓
GENERAL CHARACTERISTICS
i) Product Color: Blue & Black
ii) Product Net Weight: 138g
iii) Product Size: 79x103x31mm
iv) Standard Carton: 63.5x32x30.5cm
v) Display: 2.4 inch TFT color screen
vi) Carton Gross Weight: 14.9kg
vii) Battery: 3.7V, 1500mAh Lithium battery, Standby time 4 hours
viii) Quantity Per Carton: 50PCS
ix) Standard Accessories: Main device*1, Ordinary Probe *1, Test hook*3, Data Cable*1, Manual*1
