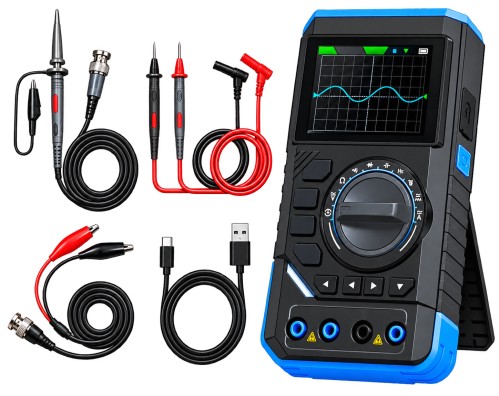

DST-210: 3 In 1 Multifunction Multimeter Oscilloscope
About Product
The 3-in-1 Multifunction Multimeter Oscilloscope combines a digital multimeter, oscilloscope, and signal generator in a compact, portable device. It features a 20,000-count multimeter, a 10MHz oscilloscope with a 48MSa/s sampling rate, and a 50kHz waveform generator. Ideal for electronic testing, circuit troubleshooting, waveform analysis, and educational laboratory applications.
1) DST-210 is 3-in-1 20000 counts Multimeter, built in Oscilloscope & Signal Generator
2) Matched with 2.8-inch TFT color display
3) Real-time curve recording
4) Data hold and overload protection
5) Standby time achieves over 15h
6) Classical knob operation with rapid responses
7) DST-210 has 10MHz 48MSa/s Oscilloscope and 50kHz Signal Generator 13 types of signal
8) Languages: English
Digital Multimeter
i) Overvoltage Category: CAT IV 600V/CAT III 1000V
ii) Display Count: 20000
iii) DC Voltage (V): 1.9999V / 19.999V / 199.99V / 1000V Accuracy: ± (0.5%+3)
iv) AC Voltage (V): 1.9999V / 19.999V / 199.99V / 750.0V Accuracy: ± (1%+3)
v) DC Current (A): 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ± (1.2%+3)
vi) AC current (A): 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ± (1.5%+3)
vii) Resistance (Ω): 19.999Ω / 1.9999kΩ / 19.999kΩ / 1.9999MΩ / 19.99MΩ Accuracy: ± (0.5%+3)
viii) Capacitance (F): 1.9999nF/19.999nF/199.99nF/9.999μF/99.99μF/999.9μF/9.999mF Accuracy: ± (2.0%+5)
ix) Frequency (Hz): 9.999mHZ/99.99mHZ/999.9mHZ/9.999HZ/99.99HZ/999.9HZ/9.9999HZ Accuracy: ± (0.1%+2)
x) Temperature (°C): (-55~1300°C)/(-67~2372°F) Accuracy: ± (2.5%+5)
xi) Diode: ✓
xii) Continuity Test: ✓
xiii) Line: ✓
Oscilloscope
i) Bandwidth: 10MHz
ii) Channels: 1CH
iii) Sampling Rate: 48MSa/s
iv) Time Base Scale: 50ns/div~20s/div
v) Vertical Sensitivity: 10mV/div~10V/div(x1)
vi) Input Impedance: 1MΩ
vii) Trigger Types: Auto/Normal/Single
viii) Auto Measurements: Max, Min, Avg, RMS, VPP, Amp, Freq, Period, Duty Cycle, Width: 10 types
Waveform Generator
i) Max frequency: 50KHz
ii) Channels: 1CH
iii) Waveform Amplitude: 0.1V-3V
iv) Square Duty Cycle: 0-100% (Square & Sawtooth adjustable)
v) Waveforms: sine wave, square wave, sawtooth wave, half wave, full wave, ladder wave, anti-ladder wave, exponential rise, exponential fall, DC, multitone, sinc pulse, lorentz wave, 13 types
GENERAL CHARACTERISTICS
i) Product Color: Black and Blue
ii) Product Net Weight: 298g
iii) Product Size: 177x87.5x34.5mm
iv) Standard Carton: 56x47.5x22cm
v) Display: 2.8-inch TFT high-definition color screen
vi) Carton Gross Weight: 16.8kg
vii) Battery: 3.7V/3000mAh lithium battery, Standby time 15 hours
viii) Quantity Per Carton: 25PCS
