EM-CUBE: Modular Multi-Scale Multi Engine Electromagnetic Simulation Suite

CEM Solvers : FDTD, Planar MoM, Wire MoM, Surface MoM, Static, Physical Optics & SBR

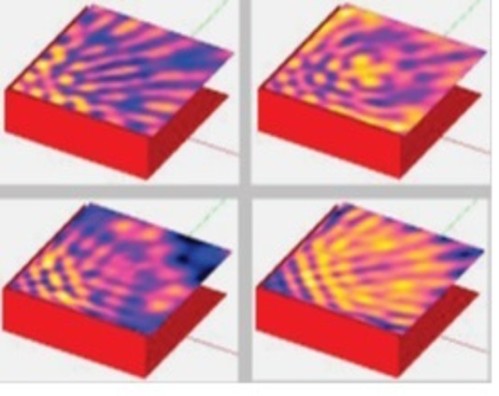

Extensive 2D/3D data visualization, graphing, post- processing utilities

Full 3D parametric CAD modeling environment with import/export of external models (STEP, IGES, STL).

Far-field radiation patterns : 3D pattern visualization and 2D polar and Cartesian graphs

Far-field characteristics such as directivity, beam width, axial ratio, side lobe levels, null parameters, etc.

Port characteristics: S/Y/Z parameters, VSWR, and Smith chart.

CubeCad a CAD Module: This is the basic 3D CAD modeling environment for creation, import and export of native and external geometric objects.

EM.Tempo a FDTD Module: This module features an FDTD simulator for full- wave time domain modeling of 3D objects, circuits, antennas, complex materials and periodic structures

EM.Picasso a Planar Module: This module features a 2.5-D Method of Moments (MoM) solver for full-wave frequency domain modeling of multilayer printed antennas, microwave circuits, and periodic planar structures.

EM.Terrano a Propagation Module : This module features an asymptotic SBR ray tracer for physics-based, site specific modeling of radio wave propagation in urban and natural environments

EM.Ferma a Static Module: This module features three electrostatic, magnetostatic, and steady-state thermal simulation engines that can be used for static or low-frequency analysis of circuits, lumped devices, and transmission lines.

EM.Libera a MoM3D Module: This module features two 3D Method of Moments (MoM) solvers for full-wave frequency domain modeling of 3D free-space structures: A Wire MoM simulator and a Surface MoM simulator.

EM.Illumina a Physical Optics Module: This module features an iterative Physical Optics (PO) solver for asymptotic modeling of electromagnetic scattering from large metallic structures and impedance surfaces in the free space.
