FOL-APD: Avalanche Photodiode Detector Module
About Product

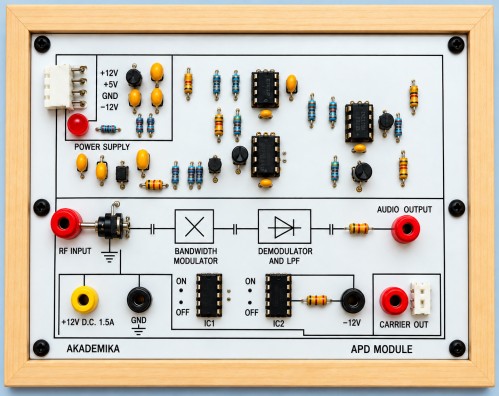

The Avalanche Photodiode Detector Module is an educational training system designed to study the characteristics and performance of avalanche photodiodes in fiber optic communication. It supports practical measurements of APD responsivity at 1310nm and 1550nm, along with bias voltage versus gain characteristics. The module features an adjustable high-voltage power supply and SC-type optical connectors for hands-on experimentation.
1) Provision for Responsivity measurement of APD.
2) Provision for bias voltage VS gain measurement of APD.
3) Built in variable high voltage power supply for APD biasing.
4) All connectors are suitable for SC type of connector interface.
2) Provision for bias voltage VS gain measurement of APD.
3) Built in variable high voltage power supply for APD biasing.
4) All connectors are suitable for SC type of connector interface.
1) Photo detector: Silicon / InGaAs APD
2) Responsivity @ 1310 nm (Vr=10V): 0.75A/W
3) Responsivity @ 1550 nm (Vr=10V): 0.85A/W
4) Optical Interface: SC type
5) Breakdown Voltage: 38 ( Min) to 54 (Max)
6) Gain: 10(Typ)
7) Bias Control: Potentiometer
8) Power supply : -12v , +12v , +5v , GND
9) Reverse Bias voltage: +54V DC (Max)
ACCESSORIES
i) Fiber optic cable - Singlemode Plastic Fiber
ii) Patch Cords
iii) Manual
iv) Power Supply
v) Power Cord
2) Responsivity @ 1310 nm (Vr=10V): 0.75A/W
3) Responsivity @ 1550 nm (Vr=10V): 0.85A/W
4) Optical Interface: SC type
5) Breakdown Voltage: 38 ( Min) to 54 (Max)
6) Gain: 10(Typ)
7) Bias Control: Potentiometer
8) Power supply : -12v , +12v , +5v , GND
9) Reverse Bias voltage: +54V DC (Max)
ACCESSORIES
i) Fiber optic cable - Singlemode Plastic Fiber
ii) Patch Cords
iii) Manual
iv) Power Supply
v) Power Cord
