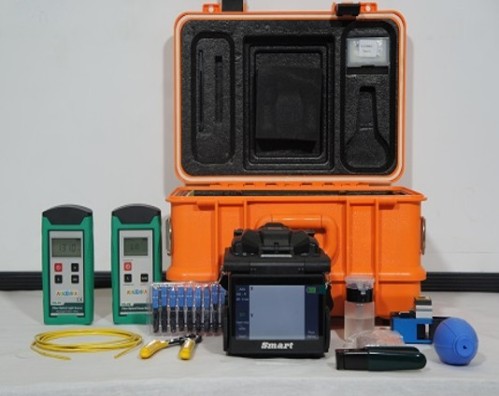

FOL-CSK: Fiber Optic Test Equipment for Connectorisation and Splicing

Complete Set to Skill in Connectorisation and Splicing

Includes:

Splicing Machine with Cleaver
Connectorisation Tool Kit
Optical Power Meter
Optical Light Source

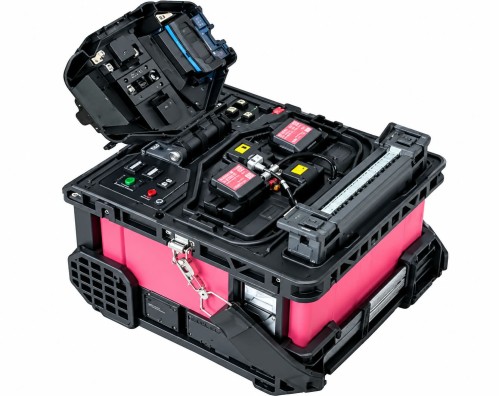

Fusion Splicing Machine with Fiber Optic Cleaver

Fiber alignment: Core/cladding alignment / Manual alignment
Splicing time : 9 Sec , Heating time:  22 Sec
Applicable Fibers: SM and MM
Splice Loss : 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss: Better than 60 dB
No of Motors: 4
Screen: 5 inch color LCD screen is resistant to impact, scratches, and protective shell
Magnification: X/Y:115 times, X or Y:230 times

Connectorisation Tool  Kit consisting of

SC-Fast Connectors- 20 Nos
Tools like Buffer Stripper, Cutters etc
Glass Fiber Spool -100 Mtr.
3Mtr. Optical Patch Chord - 2 Nos.

Optical Power Meter:

Wavelength(nm): 800 to 1650
Detector: InGaAs
Optical connector : SC /ST Universal 2.5mm adaptor
Measurement range (dBm) : -70 to +10
Standard wavelength (nm) : 850/ 980/ 1310/ 1490 / 1550/ 1625

Optical Light Source

Emitter type : FP-LDo  Wavelength(nm) : 1550
Optical connector  : (SC / ST type)o  Outputpower (dBm): -7dBm at 850 / 1300nm
Modulation  frequencies : CW,  2Hz at 650nm, CW, 270Hz, 1KHz, 2KHz at Others
Fiber type : SM, MM
