FOL-WAVE: Construction and Study of Mode Properties of Planar Waveguide
About Product

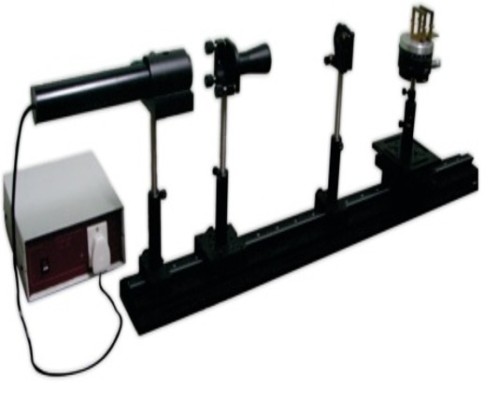

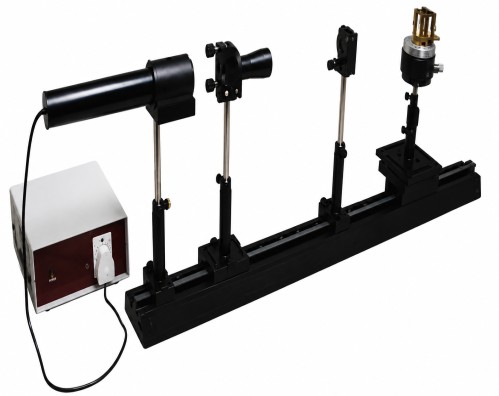

The FOL-WAVE Construction and Study of Mode Properties of Planar Waveguide system is a complete laboratory setup for designing and analyzing single-mode and multimode planar optical waveguides using ion-exchange techniques. It includes specialized optical mounting hardware, a He-Ne laser source, precision prism-coupling arrangements, and essential fabrication tools such as a furnace and crucible. This platform enables students and researchers to study guided modes, effective refractive index, and critical mode parameters in planar waveguides
1) The lab allows construction of single mode and multi mode planner waveguides using ion exchange technique and also to study the optical characteristics of these waveguides.
2) Opto-Mechanical components allow easy installation of optical components and alignment of experimental setup to study the optical characteristics of these waveguides.
3) Waveguide preparation tools such as furnace, crucible, chemicals, glassware, IR lamp, etc. provide complete solution for waveguide construction in lab.
4) Specially designed waveguide-prism coupler holder allows easy mounting of prism waveguide assembly and efficient coupling of light.
2) Opto-Mechanical components allow easy installation of optical components and alignment of experimental setup to study the optical characteristics of these waveguides.
3) Waveguide preparation tools such as furnace, crucible, chemicals, glassware, IR lamp, etc. provide complete solution for waveguide construction in lab.
4) Specially designed waveguide-prism coupler holder allows easy mounting of prism waveguide assembly and efficient coupling of light.
1) Reflection/Refraction experiments are performed using quartz half cylindrical lens mounted on graduated rotational mounts.
2) Allows construction and characteristics study of single and multimode planer waveguides.
3) Involves opto-electronics and optical components along with opto-mechanical hardware.
4) Light coupling method using prism coupling technique.
Laser
i) Source Type : He-Ne Laser
ii) Wavelength : 632.8nm
iii) Light : Red Visible
iv) O/P Power : 2 mW
v) Complete system with power supply
Waveguide
i) Single mode, multi mode waveguide
ii) Substrate - Soda lime glassIon exchange using Potassium Nitrate ion (KNO₃) bath
Prism
i) Right Angle Prism : 10 X 10 X 10mm. +0/-0.2mm
ii) Surface Quality : 60/40
iii) Refractive Index : >1.7
iv) Polished Surface : Diagonal, bone and back side
v) Unpolished Surface : Two side surfaces
Colimeter
i) Gallilium Construction
ii) Magnification by 10X
2) Allows construction and characteristics study of single and multimode planer waveguides.
3) Involves opto-electronics and optical components along with opto-mechanical hardware.
4) Light coupling method using prism coupling technique.
Laser
i) Source Type : He-Ne Laser
ii) Wavelength : 632.8nm
iii) Light : Red Visible
iv) O/P Power : 2 mW
v) Complete system with power supply
Waveguide
i) Single mode, multi mode waveguide
ii) Substrate - Soda lime glassIon exchange using Potassium Nitrate ion (KNO₃) bath
Prism
i) Right Angle Prism : 10 X 10 X 10mm. +0/-0.2mm
ii) Surface Quality : 60/40
iii) Refractive Index : >1.7
iv) Polished Surface : Diagonal, bone and back side
v) Unpolished Surface : Two side surfaces
Colimeter
i) Gallilium Construction
ii) Magnification by 10X
1) Demonstration of laws of reflection and refraction with measurement
2) Demonstration of total internal reflection and calculation of critical angle
3) Demonstration of polarization of light with TE and TM modes
4) Calculation of Brewster's angle
5) Determination of the mode structure of a step index planer waveguide
6) Measurement of the coupling angles and mode effective indices for the TE polarization state
7) Determination of the mode structure of waveguide for TM polarization state
8) Calculation of the refractive index and the thickness of the step index waveguide from the measured mode spectrum
9) Establishing the design of a single mode step index waveguide
10) Determination of the mode structure of a graded index planer waveguide
11) Calculation of the surface index and the thickness of the grade index waveguide from the measured mode spectrum
12) Establishing the design of a single mode graded index waveguide
2) Demonstration of total internal reflection and calculation of critical angle
3) Demonstration of polarization of light with TE and TM modes
4) Calculation of Brewster's angle
5) Determination of the mode structure of a step index planer waveguide
6) Measurement of the coupling angles and mode effective indices for the TE polarization state
7) Determination of the mode structure of waveguide for TM polarization state
8) Calculation of the refractive index and the thickness of the step index waveguide from the measured mode spectrum
9) Establishing the design of a single mode step index waveguide
10) Determination of the mode structure of a graded index planer waveguide
11) Calculation of the surface index and the thickness of the grade index waveguide from the measured mode spectrum
12) Establishing the design of a single mode graded index waveguide
