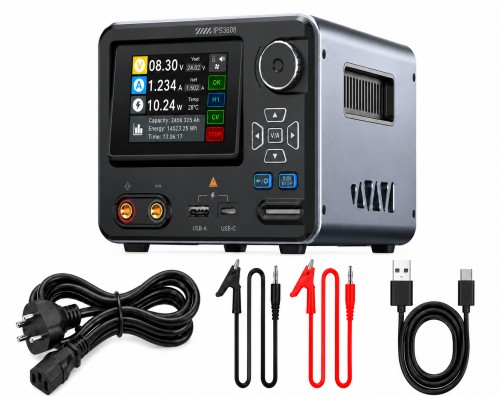

IPS3608: DC Intellignt Power Supply
About Product
The DC Intelligent Power Supply is a programmable power supply offering 0–36V output voltage and 0–8A current with a maximum power of 288W. It features real-time voltage and current monitoring, adjustable protection thresholds, and intelligent temperature-controlled cooling. Ideal for electronics laboratories, circuit testing, and precise power supply applications.
1) DC 0~36V , 0~8A Power Supply
2) Real-time voltage & current with VI curve
3) Knob with buttons, convenient for parameter adjustment
4) Protection thresholds customizable
5) Temperature detection and auto fan cooling
6) Eightfold Protection: overvoltage, overcurrent, overpower, overtemperature, undervoltage, short circuit, output reverse injection and input reverse connection
7) Languages: English
Output
i) Voltage: DC 0~36V
ii) Current: 0~8A
iii) Power: 0~288W
Setting Resolution
i) Voltage: 0.01V
ii) Current: 0.001A
Readback Value Accuracy
i) Voltage: ± (0.3%+3 bits)
ii) Current: ± (0.15%+5 bits)
iii) Input: AC 100-240V (50/60HZ)
iv) Output Channels: 3
v) Output interface: Terminals ± & USB A & Type C
vi) Operating Environment: -10°C~40°C, 0%~75%RH
vii) Load Regulation Rate: ± (0.2%+2 bits)
viii) Cooling Solution: Automatic fan activation triggered by temperature detection
8 Major Protections
i) Overvoltage: 0~36V
ii) Overcurrent: 0~8.2A
iii) Overpower: 0W~295.2W
iv) Overtemperature: 0~99°C
v) Undervoltage: 0~36V
vi) Short circuit: ✓
vii) Output reverse injection: ✓
viii) Input reverse connection: ✓
GENERAL CHARACTERISTICS
i) Display: 2.8-inch Color Screen
ii) Product Color: Black and Grey
iii) Product Net Weight: 1539g
iv) Product Size: 138x214x115mm
v) Standard Carton: 60x54x31cm
vi) Carton Gross Weight: 23.4kg
vii) Quantity Per Carton: 12PCS
