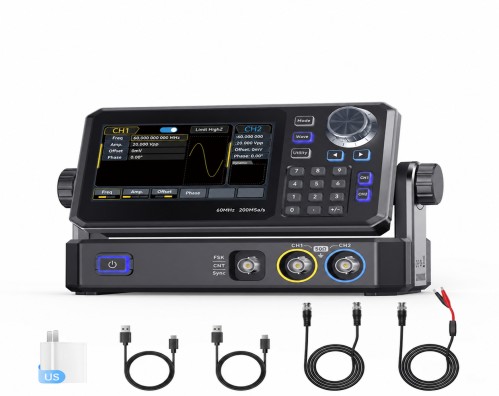

TSG6020: 60MHz 2CH Function Signal Generator
About Product
The TSG6020 60MHz 2CH Function Signal Generator is a dual-channel arbitrary waveform generator designed for precise signal generation and testing. It features a maximum frequency of 60MHz, 200MSa/s sampling rate, 14-bit vertical resolution, and supports sine, square, pulse, ramp, noise, and arbitrary waveforms. Ideal for electronics laboratories, circuit testing, waveform analysis, and educational applications.
1) Dual-channel output, max frequency 60 MHz / 30 MHz, max amplitude 20 Vpp
2) 200 MSa/s sampling rate, 14-bit vertical resolution
3) Supports sine, square, pulse, ramp, noise, DC, and arbitrary waveforms
4) ZeroSurge and VeriPoint technologies for low-jitter, high-fidelity waveforms
5) Switchable DDS / point-by-point output modes
6) Provides 7-digit high-precision frequency counter functionality, supporting TTL signals
7) 4.3-inch high-resolution TFT color display with 90° rotation, dual operation via keypad and touchscreen
8) USB Device for remote control and waveform transfer; Type-C power input supports portable power supply
9) Languages: English
Arbitrary Waveform Generator
i) Max Frequency: 60 MHz
ii) Channels: 2CH
iii) Sample Rate: 200 MSa/s
iv) Vertical Resolution: 14-bit (including sign)
v) Frequency Resolution: 1 μHz
vi) Amplitude: 2 mVpp ~ 20 Vpp (High-Z, <10 MHz) / 2 mVpp ~ 10 Vpp (High-Z, >10 MHz)1 mVpp ~ 10 Vpp (50 Ω, <10 MHz) / 1 mVpp ~ 5 Vpp (50 Ω, >10 MHz)
vii) Offset: High-Z: -9.999V~9.999V
viii) Output Waveforms: Sine, Square, Ramp, Pulse, Triangle, Noise, DC, Arbitrary
ix) Memory Depth: 4 kpts
x) Non-Volatile Storage: 24 Waveforms
xi) THD: <0.2% (Sine, DC ~ 20 kHz, 1Vpp)
xii) Amplitude Flatness (relative to 1 kHz sine, 1 Vpp / 50 Ω): Typical (Sine, 2.0 Vpp) ≤100kHz: ± 0.1dB, ≤20MHz: ± 0.3dB ≤30MHz: ± 0.5dB, ≤40MHz: ± 0.6dB, ≤60MHz: ± 0.8dB
xiii) Rise / Fall Time: <20ns (typical)
xiv) Duty Cycle: 0.01% ~ 99.99% adjustable (Square)
xv) Accuracy (1 kHz Sine): ±(Set Value x 5% + 2 mVpp)
xvi) Jitter: DDS Mode: 5 ns ± 150 ps, Point-by-Point Mode: ±150 ps
xvii) Output Impedance: 50 Ω (typical)
xviii) Operating Modes: Gated, Continuous, Modulate, Frequency Sweep
xix) Sweep Types: Linear, Logarithmic
xx) Modulation Types: AM, FM, PM, FSK, ASK, PSK
xxi) Output Modes: DDS, Point-by-Point
xxii) Interfaces: USB Device, Type-C Power Input
Frequency Counter
i) Input Level: TTL compatible
ii) Output Frequency Range: 100 mHz ~ 100 MHz
iii) Accuracy: ±51 ppm
iv) Frequency Resolution: 7 digits
v) Coupling: DC
GENERAL CHARACTERISTICS
i) Temperature Range: Operating: 10°C to +40°C; Storage: -20°C to +60°C
ii) Humidity Range: Below +35°C: ≤90% RH ; +35°C to +40°C: ≤60% RH
iii) Altitude: Operating: ≤2000 m; Non-operating: ≤15000 m
iv) Display: 4.3-inch TFT LCD (480*272)
v) Power Supply: DC 5V / 2A
vi) Power Consumption: < 10 W
vii) Product Color: Graphite
viii) Product Size: 205x82x123 mm
ix) Product Net Weight: 739g
x) Standard Carton: 63x34x24.5 cm
xi) Carton Gross Weight: 13.8 kg
xii) Quantity Per Carton: 10 PCS
xiii) Standard Accessories: Main Device*1, Charging Adapter*1, Type-C Charging Cable*1, Data Cable*1, Test Lead Cable*1, Alligator Clips*1, User Guide*1
