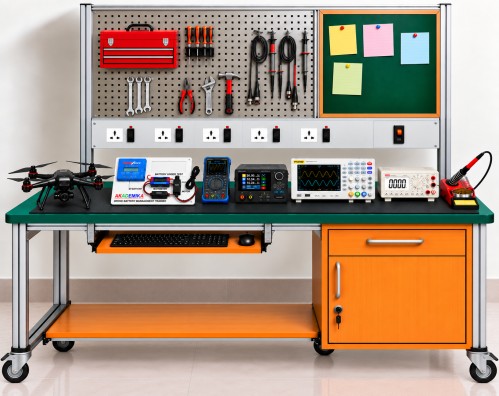

WB-DRONE: Drone Technology Workbench

i) i) Dimensions : 1500mm x 750mm x 750mm
ii) 25mm Table Top
iii) 30mm × 30mm aluminium extrusion
iv) Lockable castor wheels
v) Cupboard with shelf : 450mm x 450mm  x 450mm
vi) Drawer :  450mm x 450mm x 150 mm
vii) Computer Keyboard drawer under the table 50mm x 380mm
viii) Electric Panel height from table top 100mm
ix) 5 Sockets with circuit breaker
x) Back panel 900mm above the table top
xi) Perforated sheet panel for hanging tools 600mm
xii) Baseplate for Computer 1000mm x 375mm

1) Bench-top 2 In 1 Oscilloscope
Oscilloscope
i) Bandwidth: 100MHz
ii) Channels: 2CH
iii) Sampling Rate: 1GSa/s
iv) Rise Time: <3ns
v) Memory Depth: 240kpts
vi) Waveform Capture Rate: 50000wfms/s
vii) Vertical Sensitivity: 50mV/div-50V/div
viii) Input Impedance: 1MΩ
ix) Time Base Scale: 10ns/div-50s/div
x) Trigger Types: Auto/Normal/Single
xi) Auto Measurements: Vpp, Max, Min, RMS(Vrms), Avg(Vavg), Peak, Freq, Cycle, Time+, Time-, Duty+,  Duty- 12 types
Waveform Generator
i) Max Frequency: 10MHz
ii) Channels: 1CH
iii) Vertical Resolution: 1Hz
iv) Modulations: Capture waveform as a source to output, 1MHz 2.4VPP
v) Frequency Characteristics:
Sin: 10MHz 2.5VPP
Square: 2MHz 2.5VPP
Triangle: 2MHz 2.5VPP
Sawtooth: 2MHz 2.5VPP
Ladder: 2MHz 2.5VPP
Others: 2MHz 2.5VPP
vi) Waveforms: sine, square, triangle, sawtooth, anti sawtooth, ladder wave, half wave, full wave, exponential wave, logarithmic wave, log-periodic wave, square root wave, multi-tone signal, sync pulse wave; 14 types

2) Benchtop Multimeter
i) 4½ digit,19,999-count True-RMS DMM
iii) DC/AC voltage and current, resistance, capacitance, frequency, diode and continuity up to 1000 V and 20 A.

3) 3 In 1 Multification Multimeter Oscilloscope
Digital Multimeter
i) Overvoltage Category: CAT IV 600V/CAT III 1000V
ii) Display Count: 20000
iii) DC Voltage (V): 1.9999V / 19.999V / 199.99V / 1000V Accuracy: ± (0.5%+3)
iv) AC Voltage (V): 1.9999V / 19.999V / 199.99V / 750.0V Accuracy: ± (1%+3)
v) DC Current (A): 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ± (1.2%+3)
vi) AC current (A): 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ± (1.5%+3)
vii) Resistance (Ω): 19.999Ω / 1.9999kΩ / 19.999kΩ / 1.9999MΩ / 19.99MΩ Accuracy: ± (0.5%+3)
viii) Capacitance (F): 1.9999nF/19.999nF/199.99nF/9.999μF/99.99μF/999.9μF/9.999mF Accuracy: ± (2.0%+5)
ix) Frequency (Hz): 9.999mHZ/99.99mHZ/999.9mHZ/9.999HZ/99.99HZ/999.9HZ/9.9999HZ Accuracy: ± (0.1%+2)
x) Temperature (°C): (-55~1300°C)/(-67~2372°F) Accuracy: ± (2.5%+5)
xi) Diode: ✓
xii) Continuity Test: ✓
xiii) Line: ✓
Oscilloscope
i) Bandwidth: 10MHz
ii) Channels: 1CH
iii) Sampling Rate: 48MSa/s
iv) Time Base Scale: 50ns/div~20s/div
v) Vertical Sensitivity: 10mV/div~10V/div(x1)
vi) Input Impedance: 1MΩ
vii) Trigger Types: Auto/Normal/Single
viii) Auto Measurements: Max, Min, Avg, RMS, VPP, Amp, Freq, Period, Duty Cycle, Width; 10 types
Waveform Generator
i) Max frequency: 50KHz
ii) Channels: 1CH
iii) Waveform Amplitude: 0.1V-3V
iv) Square Duty Cycle: 0-100% (Square & Sawtooth adjustable)
v) Waveforms: sine wave, square wave, sawtooth wave, half wave, full wave, ladder wave, anti-ladder wave, exponential rise, exponential fall, DC, multitone, sinc pulse, lorentz wave, 13 types

4) Temperature Controlled Soldering Station
i) 90 W
ii) 80 °C to 480 °C temperature range
iii) Digital display
iv) Ceramic heating element
v) 230 VAC, 50 Hz.

5) Soldering Kit:
i) Soldering & Desoldering: Soldering wire (lead and lead-free), solder flux, solder paste, flux paste, desoldering wick, and desoldering pump.
ii) Soldering Accessories: Magnifier, helping hands, sponge, brass wool, and extra soldering tips.
iii) Workplace Safety: Fume extractor, ESD mat, and ESD wrist strap.
iv) Heating & Insulation: Heat gun and Kapton tape DC Intelligent Digital Control Power Supply
v) Cooling Solution: Automatic fan activation triggered by temperature detection

6) DC Intelligent Digital Control Power Supply
Output
i) DC Voltage: 0~36V
ii) Current: 0~8A
iii) ower: 0~288W
iv) Setting Resolution Voltage: 0.01V
v) Current: 0.001A
Readback Value Accuracy
i) Voltage: ± (0.3%+3 bits)
ii) Current: ± (0.15%+5 bits)
iii) Input: AC 100-240V (50/60HZ)
iv) Output Channels: 3
v) Output interface: Terminals ± & USB A & Type C
vi) Operating Environment: -10°C~40°C, 0%~75%RH
vii) Load Regulation Rate: ± (0.2%+2 bits)
viii) Cooling Solution: Automatic fan activation triggered by temperature detection
‍8 Major Protections
i) Overvoltage: 0~36V
ii) Overcurrent: 0~8.2A
iii) Overpower: 0W~295.2W
iv) Overtemperature: 0~99°C
v) Undervoltage: 0~36V
vi) Short circuit: ✓
vii) Output reverse injection: ✓
viii) Input reverse connection: ✓

7) Drone Battery Testing Equipment
i) Battery Charger: Charger capable of charging LiPo, Li-ion, and other battery types using AC, 12 V DC, or another LiPo battery as a power source.
ii) Battery Safety: LiPo-safe charging and storage bag.
iii) Battery Testing: LiPo tester for checking battery and individual cell voltages.
iv) Power Measurement: Wattmeter for monitoring voltage, current, and power during testing.

8) BLDC Motor Thrust Stand
i) Thrust range: -5 to +5 kgf
ii) Torque: -2 to +2 N·m
iii) Current: 0– 55 A
iv) Voltage: 0–50 V
v) Motor speed up to 190 k eRPM
vi) Live software data, real-time plots, manual motor/servo control, automated test routines and Python API
vii) Includes optical RPM probe, motors, ESC and multiple propellers

9) Mechanical Tool Kit
i) Hand Tools: Adjustable wrench, Allen key set, ratcheting wrench kit, set of pliers, and tweezers.
ii) Power & Cutting Tools: Cordless screwdriver set, utility knife, and scissors.
iii) Assembly & Fastening: Hot glue, superglue, threadlocker, epoxy, cable ties, Velcro straps, tape, and miscellaneous
fasteners set.
iv) Measurement & Organization: Digital calipers, magnetic parts tray, toolbox, and cable markers.
v) Cleaning & Maintenance: Isopropyl alcohol for cleaning components, tools, and surfaces.

‍*Image shown is for reference only and does not represent the actual workbench configuration or design.
