WB-EL: Electronic Workbench

MECHANICAL AND ELECTRICAL SPECIFICATIONS

i) Dimensions : 1500mm x 750mm x 750mm
ii) 25mm Table Top
iii) 30mm × 30mm aluminium extrusion
iv) Lockable castor wheels
v) Cupboard with shelf : 450mm x 450mm  x 450mm
vi) Drawer :  450mm x 450mm x 150 mm
vii) Computer Keyboard drawer under the table 50mm x 380mm
viii) Electric Panel height from table top 100mm
ix) 5 Sockets with circuit breaker
x) Back panel 900mm above the table top
xi) Perforated sheet panel for hanging tools 600mm
xii) Baseplate for Computer 1000mm x 375mm

‍TECHNICAL SPECIFICATIONS

A) DC Intelligent Digital Control Power Supply
Output
i) Voltage: DC 0~36V
ii) Current: 0~8A
iii) Power: 0~288W
Setting Resolution
i) Voltage: 0.01V
ii) Current: 0.001A
‍Readback Value Accuracy
i) Voltage: ± (0.3%+3 bits)
ii) Current: ± (0.15%+5 bits)
iii) Input: AC 100-240V (50/60HZ)
iv) Output Channels: 3
v) Output interface: Terminals ± & USB A & Type C
vi) Operating Environment: -10°C~40°C, 0%~75%RH
vii) Load Regulation Rate: ± (0.2%+2 bits)
viii) Cooling Solution: Automatic fan activation triggered by temperature detection
‍8 Major Protections
i) Overvoltage: 0~36V
ii) Overcurrent: 0~8.2A
iii) Overpower: 0W~295.2W
iv) Overtemperature: 0~99°C
v) Undervoltage: 0~36V
vi) Short circuit: ✓
vii) Output reverse injection: ✓
viii) Input reverse connection: ✓

B) 2CH Function Signal Generator
Arbitrary Waveform Generator
i) Max Frequency: 60 MHz
ii) Channels: 2CH
iii) Sample Rate: 200 MSa/s
iv) Vertical Resolution: 14-bit (including sign)
v) Frequency Resolution: 1 μHz
vi) Amplitude: 2 mVpp ~ 20 Vpp (High-Z, <10 MHz) / 2 mVpp ~ 10 Vpp (High-Z, >10 MHz)
vii) 1 mVpp ~ 10 Vpp (50 Ω, <10 MHz) / 1 mVpp ~ 5 Vpp (50 Ω, >10 MHz)
viii) Offset: High-Z: -9.999V~9.999V
ix) Output Waveforms: Sine, Square, Ramp, Pulse, Triangle, Noise, DC, Arbitrary
x) Memory Depth: 4 kpts
xi) Non-Volatile Storage: 24 Waveforms
xii) THD: <0.2% (Sine, DC ~ 20 kHz, 1Vpp)
xiii) Amplitude Flatness (relative to 1 kHz sine, 1 Vpp / 50 Ω): Typical (Sine, 2.0 Vpp) ≤100kHz: ± 0.1dB, ≤20MHz: ± 0.3dB ≤30MHz: ± 0.5dB, ≤40MHz: ± 0.6dB, ≤60MHz: ± 0.8dB
xiv) Rise / Fall Time: <20ns (typical)
xv) Duty Cycle: 0.01% ~ 99.99% adjustable (Square)
xvi) Accuracy (1 kHz Sine): ±(Set Value x 5% + 2 mVpp)
xvii) Jitter: DDS Mode: 5 ns ± 150 ps, Point-by-Point Mode: ±150 ps
xviii) Output Impedance: 50 Ω (typical)
xix) Operating Modes: Gated, Continuous, Modulate, Frequency Sweep
xx) Sweep Types: Linear, Logarithmic
xxi) Modulation Types: AM, FM, PM, FSK, ASK, PSK
xxii) Output Modes: DDS, Point-by-Point
xxiii) Interfaces: USB Device, Type-C Power Input
Frequency Counter
i) Input Level: TTL compatible
ii) Output Frequency Range: 100 mHz ~ 100 MHz
iii) Accuracy: ±51 ppm
iv) Frequency Resolution: 7 digits
v) Coupling: DC

C) Bench-top 2 In 1 Oscilloscope
Oscilloscope
i) Bandwidth: 100MHz
ii) Channels: 2CH
iii) Sampling Rate: 1GSa/s
iv) Rise Time: <3ns
v) Memory Depth: 240kpts
vi) Waveform Capture Rate: 50000wfms/s
vii) Vertical Sensitivity: 50mV/div-50V/div
viii) Input Impedance: 1MΩ
ix) Time Base Scale: 10ns/div-50s/div
x)Trigger Types: Auto/Normal/Single
xi) Auto Measurements: Vpp, Max, Min, RMS(Vrms), Avg(Vavg), Peak, Freq, Cycle, Time+, Time-, Duty+, Duty- 12 types
Waveform Generator
i) Max Frequency: 10MHz
ii) Channels: 1CH
iii) Vertical Resolution: 1Hz
iv) Modulations: Capture waveform as a source to output, 1MHz 2.4VPP
v) Frequency Characteristics:
Sin: 10MHz 2.5VPP
Square: 2MHz 2.5VPP
Triangle: 2MHz 2.5VPP
Sawtooth: 2MHz 2.5VPP
Ladder: 2MHz 2.5VPP
Others: 2MHz 2.5VPP
vi) Waveforms: sine, square, triangle, sawtooth, anti sawtooth, ladder wave, half wave, full wave, exponential wave, logarithmic wave, log-periodic wave, square root wave, multi-tone signal, sync pulse wave; 14 types

D) 3 In 1 Multification Multimeter Oscilloscope
Digital Multimeter
i) Overvoltage Category: CAT IV 600V/CAT III 1000V
ii) Display Count: 20000
iii) DC Voltage (V): 1.9999V / 19.999V / 199.99V / 1000V Accuracy: ± (0.5%+3)
iv) AC Voltage (V): 1.9999V / 19.999V / 199.99V / 750.0V Accuracy: ± (1%+3)
v) DC Current (A): 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ± (1.2%+3)
vi) AC current (A): 19.999mA / 199.99mA / 1.9999A / 9.999A Accuracy: ± (1.5%+3)
vii) Resistance (Ω): 19.999Ω / 1.9999kΩ / 19.999kΩ / 1.9999MΩ / 19.99MΩ Accuracy: ± (0.5%+3)
viii) Capacitance (F): 1.9999nF/19.999nF/199.99nF/9.999μF/99.99μF/999.9μF/9.999mF Accuracy: ± (2.0%+5)
ix) Frequency (Hz): 9.999mHZ/99.99mHZ/999.9mHZ/9.999HZ/99.99HZ/999.9HZ/9.9999HZ Accuracy: ± (0.1%+2)
x) Temperature (°C): (-55~1300°C)/(-67~2372°F) Accuracy: ± (2.5%+5)
xi) Diode: ✓
xii) Continuity Test: ✓
xiii) Line: ✓
Oscilloscope
i) Bandwidth: 10MHz
ii) Channels: 1CH
iii) Sampling Rate: 48MSa/s
iv) Time Base Scale: 50ns/div~20s/div
v) Vertical Sensitivity: 10mV/div~10V/div(x1)
vi) Input Impedance: 1MΩ
vii) Trigger Types: Auto/Normal/Single
viii) Auto Measurements: Max, Min, Avg, RMS, VPP, Amp, Freq, Period, Duty Cycle, Width; 10 types
Waveform Generator
i) Max frequency: 50KHz
ii) Channels: 1CH
iii) Waveform Amplitude: 0.1V-3V
iv) Square Duty Cycle: 0-100% (Square & Sawtooth adjustable)
v) Waveforms: sine wave, square wave, sawtooth wave, half wave, full wave, ladder wave, anti-ladder wave, exponential rise, exponential fall, DC, multitone, sinc pulse, lorentz wave, 13 types

E) Temperature Controlled Soldering Station
i) Power 90 Watt
ii) Input Supply : 230VAC , 50 Hz

F) Electronic Tool Kit
i) Soldering Iron with stand
ii) Soldering Paste
iii) Soldering Wire
iv) Desoldering Wick
v) Desoldering Pump
vi) ESD Brush
vii) Line Tester
viii) Electrical Tape
ix) Wire Cutter
x) Wire Stripper Tweezer
xi) Sponge
xii) Flusk
xiii) Screw driver Spectrum

G) Mechanical Tool Kit
i) Tool Box / Tool Storage Case
ii) Socket Set with Ratchet Handle
iii) Socket Bits
iv) Extension Rods
v) Ratchet Wrench
vi) Hex Key Set (Allen Keys)
vii) Combination Spanner Set
viii) Adjustable Wrench Set
ix) Pipe Wrench
x) Chain Pipe Wrench
xi) Combination Pliers
xii) Long Nose Pliers
xiii) Diagonal
xiv) Cutting Pliers
xv) Water Pump Pliers
xvi) Locking Pliers
xvii) Hacksaw Frame with Blade,
xviii) Tube Cutter
xix) Pipe Cutter
xx) Utility Knife / Safety Knife
xxi) Claw Hammer
xxii) Rubber Mallet
xxiii) Flat Files
xxiv) Round Files
xxv) Metal Punch Set
xxvi) Chisel Set
xxvii) Screwdriver Set
xxviii) Flat Head Screwdriver,
xxix) Phillips Head Screwdriver
xxx) Tape Measure
xxxi) Spirit Level
xxxii) Wire Brush
xxxiii) Tin Snips / Metal Cutting Shears
xxxiv) PVC Pipe Cutter
xxxv) Open End Spanner Set
xxxvi) Ring Spanner Set
xxxvii) Adjustable Pipe Wrench
xxxviii) Precision Bit Set
xxxix) Measuring Scale / Steel Ruler

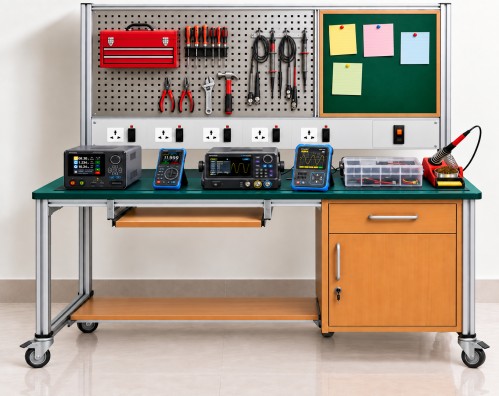

*Image shown is for reference only and does not represent the actual workbench configuration or design.
